1GE 3FE Wifi Modem Router
Overview:
- Network Interace: GPON/EPON
- Dimensions(*D*H): 162mmx102mmx33mm
- Typical Power: 4.8W
- Adaptor: 180~240VAC, 50/60HZ
- Temperature: -5~45℃
- Indicator: Power/Fiber/Broadband/WiFi/Storage
- IP Grade: IP20
- User Interface: 1GE+3FE+1POTS+1USB+WiFi 2.4GHz
- Weight:217g
- Max. Power: 10.2W(with USB load)
- Power supply: 11~14V(typical12V), 1A
- Humidity: 5%RH~95%RH non-condensing
- Fiber Type: SC/UPC
- Installation: ndoor desk/all-mounted/ln the box
Ask for a quote or leave a message below
| Ports | 1*1GE+3*1FE RJ45+POT+1*USB |
|---|---|
| Wifi | 2.4G Single Band 300Mbps |
| Size | 162*102*33mm |
| Weight | 217g |
| Mode | GPon EPon Dual Mode Adaptive |
| Connector Type | SC/UPC or SC/APC optional |
| Antenna | 2*5dBi external antenna |
| Button | 1*WPS+1*RESET+1*ON/OFF |
| Power supply | DC 12V/1A |
| Application | FTTH FTTB FTTX Solution |
What is your product warranty policy?
We offer a 2-year product warranty. Within this period, we will provide free replacements for any issues due to quality, but no returns.
Do you cover shipping costs for warranty replacements?
Yes, we cover all shipping costs for sending free replacement products if there are quality issues within the 2-year warranty period.
Can you customize products, even in small quantities?
Yes, we offer full customization services even for orders as small as 1 piece. This includes customization of software,hardware, logos, and more. We can provide quick turnaround times for custom orders, even in low quantities.
What kind of technical support do you offer?
We offer strong technical support and can provide remote debugging for products if any issues arise. Please contact us for assistance.
Do you offer semi-finished products, finished products, or production line exports?
Yes, we can provide semi-finished products, fully finished products, and complete production line exports. Please inquire for details.
What OEM & ODM services do you offer for hardware?
We provide full hardware and software design services for OEM and ODM customers. This includes PCB, firmware, and app design to specifications.
Can you customize the appearance and branding?
Yes, we offer comprehensive appearance design services and can customize the outer casing, logo, labels, and other cosmetic details to meet branding needs.
What options do you provide for internal components?
We allow diversity in the choice of internal chips, sensors, and other components to meet technical requirements. We also offer multiple mold design options to customize the inner construction as needed.
Description

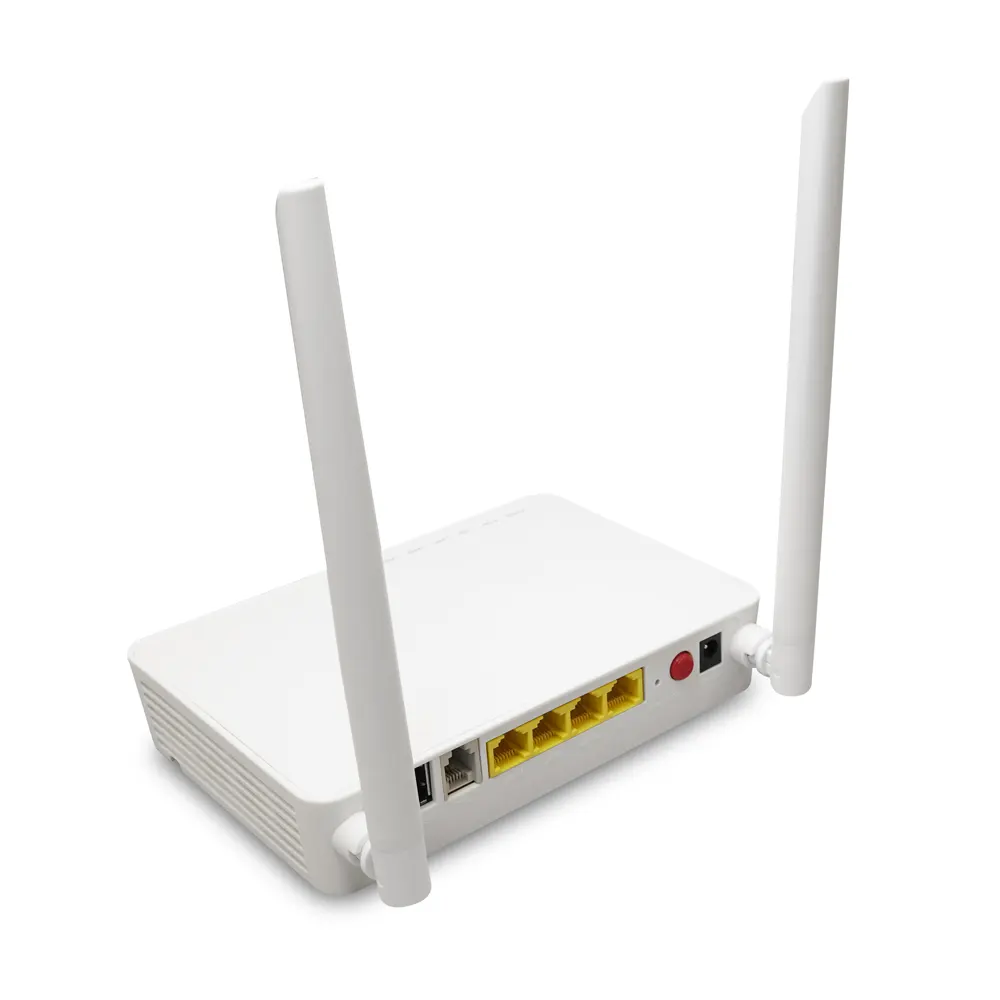

G7403 is an entry-level GPon EPon dual-mode adaptive XPon fiber optic network terminal with full functions and high cost performance. It has 4 Ethernet RJ45 interfaces, 1 Gigabit and 3 100M, a VoIP interface, a USB interface, and a switch button. G7403 adopts 2.4G single-band Wifi solution, providing a maximum Wifi connection rate of 300Mbps. This product is very suitable for low-cost fiber optic network access solutions. welcome to contact us for more information.
Product Specification
| PON modes | EPon mode |
| GPon mode | |
| Status query of PON | |
| Network | DHCP connection, basic parameters can be set, such as MTU, VLANID etc. |
| PPPOE dialing, basic parameters can be set, such as MTU,VLANID, username and password. | |
| Bridge mode, basic parameters can be set, such as MTU, VLANID etc | |
| IPV6 & lPV4 single-stack and dual-stack | |
| Interface binding and interface VLAN transform | |
| The DHCP address pool allocation of terminals | |
| IPV6 address allocation of terminals | |
| Five service type: internet、voip、tr069、cloudvr、other | |
| Voice | SIP、IMS-SIP、H248 |
| T30\T38 fax | |
| Multi-party call, call waiting, call transfer, hotline call etc | |
| Wireless Features | 2.4G Hz、max 7 sub SSlD |
| Bandwidth setting | |
| Encryption mode setting | |
| A max number of connected devices | |
| Wireless transmit power setting | |
| Sub SSlD setting | |
| WMM setting | |
| Channel selection | |
| IPTV | IGMP snooping |
| IGMP proxy | |
| MLD snooping | |
| MLD proxy | |
| Three-Layer Features | NAT/NAPT |
| Port forwarding | |
| ALG | |
| UPnP | |
| DDNS/DNS server/DNS client | |
| Static route/default route | |
| One WAN carries multiple service | |
| QoS setting | |
| Time server setting | |
| Security | The firewall can be set high, medium, or low level. |
| Anti-attack function | |
| Four filtration mode can be set: URL filtering,MAC filtering,port filtering and DNS filtering. | |
| lerminal number can be set. | |
| One-key Internet access | |
| Maintain @ Diagnosis | Log management |
| Ping diagnosis | |
| Trace route diagnosis | |
| Tr069 diagnosis | |
| Intelligent diagnosis | |
| Settings | App management |
| TR069 management | |
| Normal account and password page setting | |
| Factory data reset | |
| Upgrade | |
| Web Ul |
